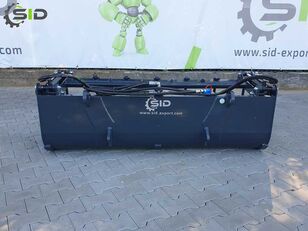

Yeni SID Grab Bucket Forged Tines S - M / Krokodilschaufel S - M / Greifs Silaj Kepçesi

The crocodile bucket is equipped with a conical bucket that makes it easy to fill and empty the machine. There is no problem with access to the material, also against the walls, because the spoon-crocodile opens very wide. The possibility of unscrewing the sides gives us easier transport of wood material, ie branches, etc. Thanks to the use of hard-wearing HARDOX steel blades and the possibility of lubricating the movable place on the sleeves, the machine is protected against quick wear.

Description:
– Depth 0,65 m, steel S355, sheath 6 mm, reinforcements 10 mm,
– Attached side parts 5 mm,
– Scouring strip Hardox HB500 150x15 mm
– In standard is attached Euro admission, other admission at surcharge = 150 €
– 12 months warranty.

MODEL S
Width | Volume SAE | Weight | Price
1200 mm | 0,31 m3 | 193 kg | 1 415 €
1400 mm | 0,36 m3 | 211 kg | 1 535 €
1600 mm | 0,41 m3 | 225 kg | 1 580 €
1800 mm | 0,46 m3 | 248 kg | 1 685 €
2000 mm | 0,51 m3 | 265 kg | 1 780 €
2200 mm | 0,56 m3 | 283 kg | 1 870 €

MODEL M
Width | Volume SAE | Weight | Price
1400 mm | 0,62 m3 | 306 kg | 1 720 €
1600 mm | 0,70 m3 | 332 kg | 1 805 €
1800 mm | 0,79 m3 | 368 kg | 1 910 €
2000 mm | 0,88 m3 | 395 kg | 2 000 €
2200 mm | 0,96 m3 | 416 kg | 2 070 €
2400 mm | 1,05 m3 | 442 kg | 2 150 €
2600 mm | 1,14 m3 | 464 kg | 2 225 €

- Schürfleiste Hardox,
- Angeschweißte Euro Aufnahme, andere Aufnahme auf Zuschlag 150 €
